S2802 DTF

Plotter DTF

• High resolution due to droplet size.
• Avoids clogging of white ink in the recirculation system, ensuring fluidity and normal operation
of the equipment.
• White ink activator system to prevent sedimentation.
• Polyamide vibrator system for greater adherence and utility.
• Air filter to remove impurities from the heater.
• Motor (Take Up) to pick up the printed material.
• Continuous ink supply system, using ink tanks and cartridges without a chip blocker.
• Static elimination for greater cleaningness and adherence on the fabric.
• Software with built-in tools ideal for better performance in your production.
• Adjustable drying speed depending on print size.

Category: DTF

Technical Specifications

PRINTING

Head: Piezoelectric head
Number of heads: 2
Ink cartridges: CMYK + White – pigment ink
Printing width: 23in / 60cm
Printing resolution:
6 passes: 49 ft linear/h (29 ft²)
8 passes: 36 ft linear/h (22 ft²)

GENERAL

RIP Software: Flexiprint ESS Edition
Weight: 379 Lb / 407 Lb + 383 Lb / 440Lb
Temperature: 64-55°F
Humidity: 35 – 65%

DIMENSIONS:

90 x 28 x 25in + 49 x 45 x 49in

DRYING SYSTEM:

Front and rear heating + color ink heating

Mixer

(White ink activator system)

WARRANTY:

One year warranty

APPLICATIONS:

Fashion line, fashion, advertising and footwear.

PRINTING MATERIAL:

Polyester film (BoPET)

REQUIREMENTS ELECTRICAL:

Printer: Requires three 220 volt outlets
Voltage: 220 V AC
Frequency: 50 – 60 Hz
Printer power: 4 Kw (total consumption)

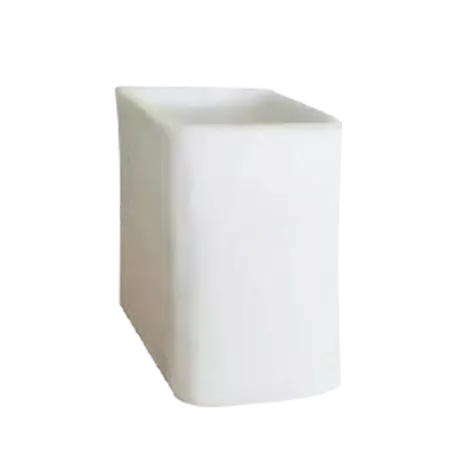

Primary filter cotton
Filter PM50
Suggestion: Change 7 – 30 days

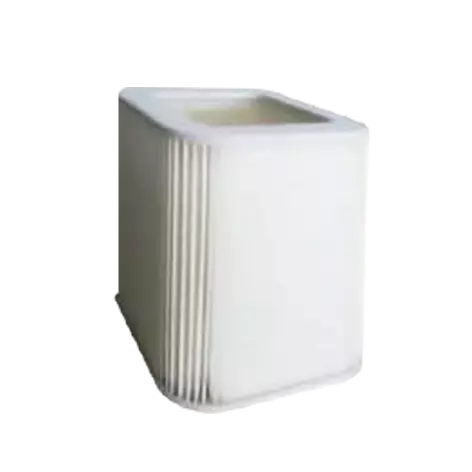

Inner filter cotton
Filter PM0.5
Suggestion: Change 3 – 6 month

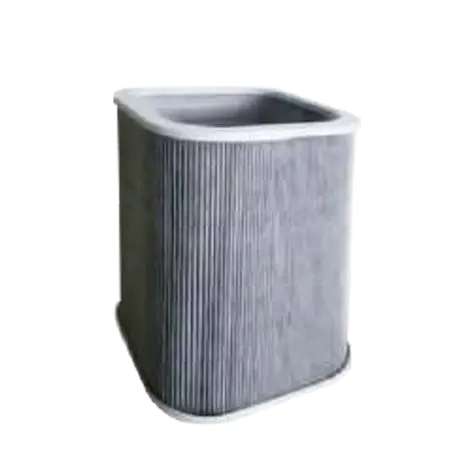

Composite carbon filter
Adsorption toxic gas
Suggestion: Change 6 – 12 month

Brochure
