HT06718P

The platinum plan (It is not optional) includes: Travel expenses, installation, training, 1 year warranty, virtual support and up to 4 technical service visits.

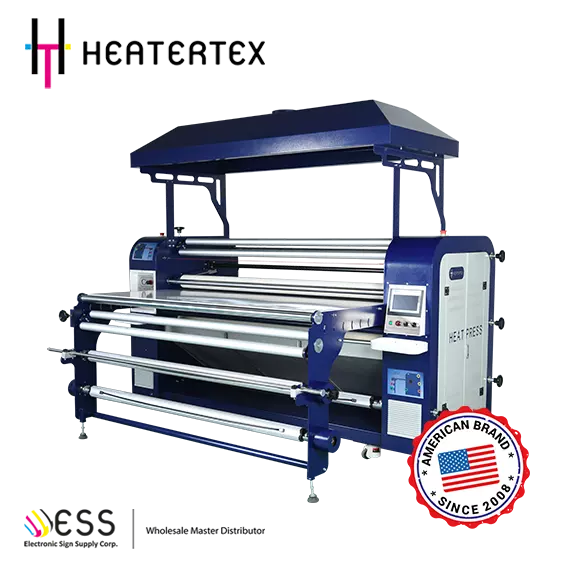

HT Series Oil Rotary Heat Tranfers / 67″ Wide/ 18″ Drum PLC Display System: A robust and flexible solution for roll-to-roll and piece-by-piece applications, HT Series rotary heat transfer machines are designed for the textile industry. This series comes in a variety of configurations, with drum diameters ranging from 9 to 17 inches and a large transfer area of 67 to 87 inches. Featuring a PLC and optional touch screen, this advanced calibration system provides comfort, security, and energy efficiency.

Enter your zip code to be redirected to our nearest distributors.

Please Enter Your Full Zip Code.
Use The 5 Digit US System
Categories: , ,

SERIE HT:

It is prepared to ensure continuous production in the sublimation line.

• Automation of daily work through the on-o scheduling system.
• Steel cylinder with Teon surface to prevent rust and maintain uniform temperature.
• Eective, advanced and economical heating system.
• Industrial heating system with thermal oil.
• LCD touch screen.
• Password to enter special options on the LCD panel.
• Sublimated fabric meter counter, congured from the LCD panel with the option to reset the value.
• Speed controller for cylinder rotation through PLC.
• Machine controlled by PLC, SIEMENS brand.
• PLC-programmable digital temperature controller.
• Automatic blanket position correction system controlled by PLC.
• Pneumatic tensioning system for sublimation paper controlled by PLC.
• The additional tension roller for the blanket is driven by a pneumatic system controlled by the PLC.
• Oil level indicator to ensure the amount of oil in the cylinder.
• Designed for continuous roll sublimation and item sublimation.
• Independent control system on each roller to collect the used material.
• Option to change the rotation in the cylinder movement.
• Blanket protection alarm through limit sensors.
• Emergency stop device.
• Five tension rollers for the blanket. One of the rollers is driven by a pneumatic system and controlled by PLC.
• Work table for item-to-item applications.
• Air system for protection paper.
• Electrical protection system for power outages.
• Optional cover to add smoke extractor.

Technical Specifications

Belt width: 67” / 170 cm
Heat transfer principle: Thermal oil
Thermal cylinder diameter: 16.6’’ / 45 cm
Power required: 12.5 KW
Load rollers: 3
Take rollers: 3
Air supply system: Up to 100PSI
Size of the blanket: 68’’x 96’’ inches / 1.73m x 2.43m
Current: 45A-57A per phases AC 220 V
Working table: 69” x 18” / 175 cm x 45 cm

BROCHURE – Features and Specifications – Download

BROCHURE

Features and Specifications

Download

Productivity: 19” up to 156” per min / 0,5 up to 4mts per min
Transfer system: Roll to Roll and Piece to Piece
Startup time: 50 / 70 minutes aprox
Dimensions: 104”x 98”x 82” / 265cm x 2.50cm x 210cm
Weight: 1960Lb / 890Kg aprox
Max temp: 450°F / 240°C
Voltage: 3 phases 220V
Applications: Dresses, skirts, kimonos, jackets, leggings, crop
top, flags, curtains, footwear, banners, placards,
and bedspreads.
